Introduction to SSDs

If you're reading this, you probably already know that a solid state drive is faster than a hard drive. That much is obvious the first time you boot off one. The more interesting question – and the reason this guide exists – is why. Why does one SSD hit 14 GB/s while another tops out at 500 MB/s? Why do some drives slow to a crawl when they're 80% full? Why does the same controller perform differently depending on which flash is behind it? The answers come down to how these drives are actually built and how the components interact.

An SSD replaces the spinning platters and mechanical read heads of a hard drive with NAND flash memory – silicon chips with no moving parts. There's no seek time and no rotational latency; the controller addresses data electronically. That alone makes random access hundreds of times faster than a hard drive, which is why even a basic SSD transforms the responsiveness of an older system. But the hardware is far from simple. Inside every SSD is a controller running specialized firmware, some form of volatile memory for metadata and caching, NAND flash organized into a hierarchy of dies, planes, blocks, and pages, and a flash translation layer that manages it all behind the scenes. The choices a manufacturer makes at each of these levels – controller architecture, flash type, caching strategy, interface – shape the drive's performance, endurance, and cost.

This guide walks through all of it. The goal is not just to help you pick the right drive, though it will do that. It's to give you enough understanding of the underlying technology that spec sheets and marketing claims stop being opaque. When you know what SLC caching actually does, or why QLC endurance numbers look the way they do, or what a controller's channel count means for sustained writes, you can evaluate drives on your own terms instead of relying on someone else's recommendation.

How to Use This Guide

The guide is split into two parts.

Part I: The Essentials (Chapters 1–8) covers what most readers need. We go through the hardware architecture of an SSD, how NAND flash stores and moves data, the interfaces and protocols that connect a drive to your system, practical buying guidance, drive health and maintenance, and how NAND is manufactured. If you're choosing a drive, building a system, or want to understand what the numbers on a spec sheet actually mean, Part I is self-contained.

Part II: Advanced Topics (Chapters 9–11) goes deeper into the engineering. This is where we get into voltage distributions and programming sequences, detailed error correction, enterprise storage topics, and emerging memory technologies. None of it is required for making purchasing decisions, but it's the kind of depth that's hard to find outside of whitepapers and ISSCC presentations. If you want to understand how TLC flash programs three bits into a single cell or what Flexible Data Placement changes at the protocol level, Part II is there for you.

You don't have to read linearly. Each chapter is reasonably self-contained, and cross-references point you to relevant sections when a concept builds on something covered elsewhere.

Buying an SSD and short on time? Chapters 1, 5, 6, and 7 cover what you need – how drives connect to your system, how to choose one, and how to maintain it. Come back for the rest when you're curious about what's happening under the hood.

SSD Hardware Architecture

A solid state drive is made up of a few basic components: a controller, some amount of volatile memory, NAND flash, and supporting circuitry on a printed circuit board (PCB). The choice and combination of these components determines the drive's performance, endurance, and intended role. A budget DRAM-less NVMe drive and a high-end PCIe 5.0 flagship can look identical from the outside – the differences are entirely in what's on the board.

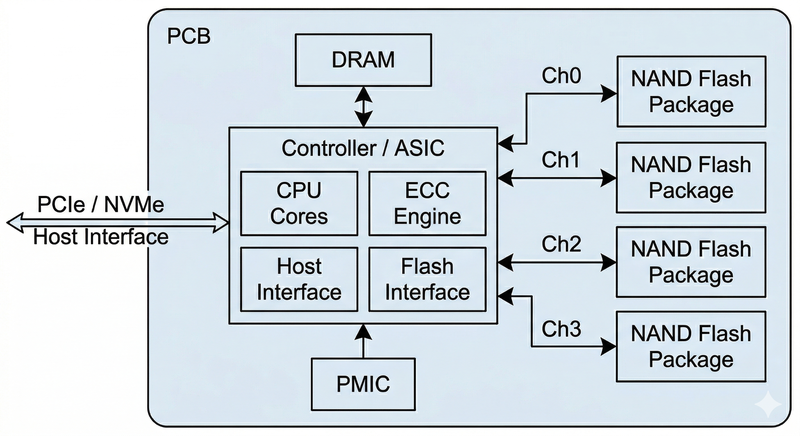

Figure 1: Internal architecture of a solid state drive.

The Controller

The controller is the brain of the SSD. It's technically a microcontroller – a specialized processor, or more accurately an application-specific integrated circuit (ASIC), that manages the flash and handles communication with the host. The "controller" label covers not just the CPU cores but also the ECC engine, the flash interface logic, the host interface, and other specialized hardware blocks that all work together.

Most SSD controllers are based on ARM architectures, commonly Cortex-R5 or Cortex-R8 variants, which are optimized for real-time, low-latency workloads. Some manufacturers use alternatives – Silicon Motion has used ARC cores in their SATA controllers, and RISC-V is emerging as an option – but ARM dominates. Current consumer controllers have anywhere from one to five cores, clocking in the 500 MHz to 1.5+ GHz range. Newer PCIe 5.0 controllers like the Phison E28 and Silicon Motion SM2508 are built on 6nm process nodes and push higher core counts and clock speeds than their predecessors.

More cores generally means higher IOPS and better overall performance, but the core configuration matters too. Some designs specialize cores for different tasks – Samsung's controllers, for instance, use distinct core types for management, reads, writes, and host interaction. Phison's CoXProcessor technology adds co-processors alongside the main cores. These design choices shape a drive's performance profile in ways that raw core counts don't capture.

Beyond the CPU cores, the controller contains buffers, registers, and error correction and defect management logic operating at multiple levels – SRAM, DRAM, and NAND – to provide data path protection from the moment data enters the drive to when it's committed to flash. The controller also communicates with the flash packages over a bus, one per channel, with bandwidth determined by the I/O speed of the flash (measured in megatransfers per second, or MT/s) and the maximum the controller supports.

Volatile Memory: SRAM and DRAM

Volatile memory loses its contents on power loss. In an SSD, volatile memory serves several purposes: caching the controller's firmware, managing commands and instructions, temporarily storing data, and – most importantly – holding the metadata that the flash translation layer (FTL) needs to operate efficiently.

SRAM

Every SSD controller has some amount of SRAM (static random-access memory) embedded in its design, typically on the order of single-digit megabytes. SRAM is faster than DRAM but far more expensive per bit, so controllers only include a small amount. Think of it as the equivalent of a CPU's L1/L2 cache. It handles the most latency-sensitive tasks: boot code, write buffering, intermediate operations, and a portion of the metadata.

If a controller has no external DRAM chip, it is considered "DRAM-less." Some DRAM-less controllers do include a small amount of embedded SDRAM on-die – enough for a limited write cache – but they still lack the dedicated external DRAM package that higher-end drives use.

Why DRAM Matters

DRAM (dynamic random-access memory) is orders of magnitude faster to access than NAND flash. On an SSD, its primary role is storing the mapping table – the data structure that translates between logical block addresses (LBAs, what the operating system sees) and physical block addresses (PBAs, where data actually sits on the flash). The FTL needs to look up and update this table constantly, and doing so from NAND would be far too slow for good performance.

The general rule is one byte of mapping data per kilobyte of stored data, because the FTL needs to track a 4-byte address for every 4 KiB block. This means a 1 TB drive typically needs about 1 GB of DRAM to hold its full mapping table. Having less than this can impact performance under certain workloads, particularly random writes, when the controller has to swap portions of the map in and out of NAND.

DRAM also helps reduce write amplification by allowing the controller to defer and coalesce metadata updates. Instead of committing every address change to NAND immediately, the controller can batch those updates – resulting in fewer writes to flash and better endurance.

Current drives use DDR4 or LPDDR4/LPDDR4X, with DDR3 largely phased out of new designs. High-end PCIe 5.0 drives commonly use LPDDR4X for its balance of latency and power efficiency. Access latency is the most important factor for this use case, ahead of raw bandwidth. Unlike a hard drive, the SSD's DRAM is typically not used as a write cache for user data – its job is metadata.

DRAM-less Designs and Host Memory Buffer

Not every SSD has DRAM. Budget NVMe drives often skip the external DRAM chip to reduce cost, relying on the controller's SRAM and a feature called Host Memory Buffer (HMB). HMB allows the SSD controller to borrow a small portion of the system's main RAM to cache its mapping table. This requires OS and driver support, which modern versions of Windows provide.

Earlier DRAM-less controllers typically used 30–40 MB of HMB, with Windows capping the default allocation around 100 MB. Modern controllers supporting HMB 3.0 can request larger allocations, with 64 MB or more becoming common. Accessing HMB is significantly slower than the controller's own SRAM – it has to traverse the NVMe link to reach system memory – but it's still far faster than going to NAND for every mapping lookup.

For consumer workloads, a good DRAM-less drive with HMB performs well enough for most users. The penalty shows up primarily under sustained random writes or heavy multitasking, where the mapping table is constantly being updated. For a secondary drive or a system that mostly handles sequential workloads (gaming, media storage), the cost savings are usually worth it.

Non-Volatile Memory: NAND Flash

Non-volatile memory retains data even when powered off. In SSDs, this is NAND flash – the storage medium where your data actually lives. The "NVM" in NVMe (Non-Volatile Memory Express) refers to this. NAND is covered in depth in Chapters 3 and 4, but a few points are relevant to the hardware overview.

NAND is much faster to access than the magnetic storage on a hard drive, especially for random workloads. However, it's also much slower than DRAM, which is why the volatile memory hierarchy matters so much.

The NAND also stores a copy of all FTL metadata, including the mapping table. This is the master copy – the version in DRAM is a working cache. FTL metadata is typically stored in SLC (single-level cell) mode for faster access and better reliability, since losing or corrupting this data could make the drive unreadable.

One thing worth noting: data retention on NAND is not infinite. If a drive sits powered off for an extended period, charge leakage in the flash cells can eventually cause bit errors. The drive checks and refreshes data on power-on, but this is one reason you shouldn't use an unpowered SSD as a long-term archive.

Other Components

Beyond the main chips, an SSD's PCB includes several supporting components.

A power management integrated circuit (PMIC) regulates voltage and power delivery across the board. Some drives use discrete power management solutions, which can improve efficiency or thermal behavior. Enterprise drives often add power loss protection (PLP) in the form of capacitors or, less commonly, a small battery. PLP ensures that data in the volatile caches can be flushed to NAND during a sudden power loss – critical in server environments. For consumers, a UPS and surge protector provide a similar safety net at the system level.

The rest of the PCB contains the signal traces connecting controller to flash packages, plus the typical resistors, capacitors, and other passive components you'd find on any circuit board. NAND packaging and signal integrity are significant engineering concerns, particularly as flash I/O speeds increase – proper signal routing on the PCB matters more at 3,600 MT/s than it did at 800 MT/s.

The Flash Translation Layer

The flash translation layer (FTL) is not a physical component but the firmware running on the controller that makes the entire drive work. It handles address translation between logical and physical locations, schedules reads and writes, manages error correction, performs wear leveling and garbage collection, tracks bad blocks, and much more. The FTL is what makes raw NAND flash – which has significant constraints on how it can be written and erased – look like a simple block device to your operating system.

At its core, the FTL is a hardware abstraction layer. The host sends read and write commands to logical addresses; the FTL figures out where those addresses map to on the physical flash, handles all the complexity of NAND management behind the scenes, and returns the data. The quality of a drive's FTL implementation – how efficiently it manages mapping, how aggressively it garbage collects, how smartly it handles SLC caching – is one of the biggest differentiators between controllers, even when the underlying flash is the same.

There's growing interest in shifting some FTL responsibilities to the host side. Host-Based FTL (HB-FTL), related to concepts like Open-Channel SSDs and more recently NVMe features like Flexible Data Placement (FDP), allow the host to make smarter decisions about data placement rather than leaving everything to the drive's firmware. This reduces the overhead of garbage collection and can significantly improve performance and endurance, particularly in datacenter environments. For consumer drives, the FTL remains fully managed by the controller. The deeper mechanics of FTL operation – mapping granularity, caching algorithms, journaling strategies – are covered in Chapter 9.

Understanding NAND Flash

NAND flash is the storage medium inside every SSD. Understanding how it works at a basic level – how data is stored, how it's read back, and what limits its lifespan – goes a long way toward making sense of SSD specifications and trade-offs. This chapter covers the fundamentals. The deeper mechanics of voltage programming, error correction algorithms, and disturb effects are covered in Chapter 9.

Cell Types: SLC, MLC, TLC, QLC, PLC

NAND flash cells are categorized by how many bits they store. SLC (single-level cell) stores one bit, MLC (multi-level cell) stores two, TLC (triple-level cell) stores three, QLC (quad-level cell) stores four, and PLC (penta-level cell) stores five. The term "MLC" technically means two or more bits per cell, but the industry convention is to treat it as meaning exactly two.

Fitting more bits into the same cell increases capacity but comes with trade-offs in both performance and endurance. Moving from MLC to TLC increases capacity by 50% (two bits to three), while moving from TLC to QLC only gains 33% (three to four). Each step also reduces endurance and increases programming latency, because distinguishing between more voltage levels requires greater precision and more error correction overhead.

The number of possible voltage states doubles with each additional bit: SLC has 2 states, MLC has 4, TLC has 8, QLC has 16, and PLC has 32. Programming a cell to one of 16 states takes more time and care than programming to one of 2. Reading also gets slower, because more reference voltages are needed to determine which state the cell is in. This is the fundamental relationship between bit density, performance, and endurance that shapes every SSD design decision.

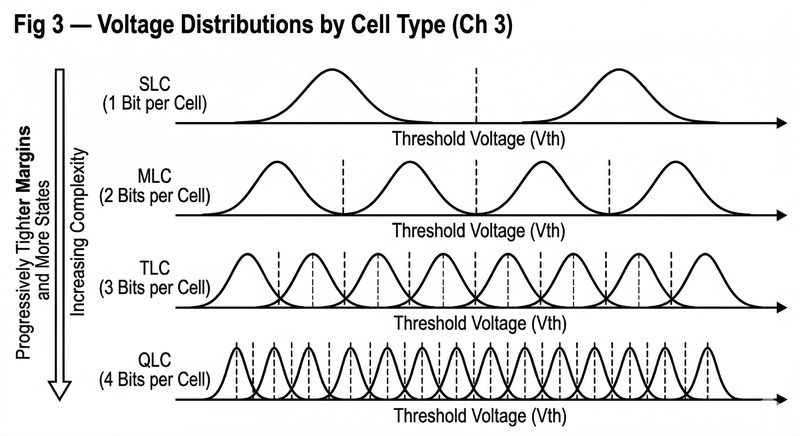

Figure 3: As bits per cell increase, voltage distributions become tighter and more numerous, requiring greater precision to read and program.

It's worth noting that a cell operating in SLC mode (one bit per cell, sometimes called pSLC) is not the same thing as a natively manufactured SLC cell. The underlying hardware is different. A TLC cell being used in SLC mode is faster and more durable than when used in TLC mode, but it's not equivalent to native SLC. This distinction matters for SLC caching, which is covered in Chapter 4.

The market has largely settled on TLC as the mainstream technology, with QLC growing in budget and high-capacity segments. MLC has been phased out of consumer drives. PLC remains in development, with limited production as of this writing.

How Data Is Stored

Each NAND cell stores data as a voltage level. A cell starts erased, with its default bit value of 1 (or 11 for MLC, 111 for TLC, and so on). Programming the cell means increasing its voltage to represent a different value. With SLC, this is straightforward – the cell is either in an erased state (1) or a programmed state (0). With TLC, the same cell needs to hold one of eight distinct voltage levels, each corresponding to a different three-bit value.

Voltage can only be increased during programming, not decreased. This is a fundamental constraint of NAND flash – to change data, you can't just overwrite the cell. The block containing that cell must first be erased back to its default state, then reprogrammed. This erase-before-write requirement drives much of the complexity in SSD firmware, from garbage collection to wear leveling (see Chapter 4).

Programming happens through a series of increasingly precise voltage pulses. The controller starts with larger steps to get close to the target level, then uses progressively smaller steps to fine-tune the final voltage. With multi-bit cells, the process involves multiple passes across the different bit pages (least significant bit, center significant bit, most significant bit for TLC), each building on the previous one. The exact programming sequences are a significant area of manufacturer optimization and are covered in detail in Chapter 9.

Over time, the stored charge can drift due to leakage, shifting a cell's voltage from its intended level. This is one of the mechanisms behind data retention loss and is why cells with more voltage states – where the margins between levels are tighter – are more susceptible to errors as they age.

How Data Is Read

Reading a cell means determining its voltage level by applying reference voltages and checking where the cell's charge falls relative to those thresholds. An SLC cell needs just one reference voltage to distinguish between its two states. A TLC cell needs seven reference voltages to distinguish between eight states. More states means more sensing steps and higher read latency.

For most consumer workloads, you're reading from the base flash – TLC or QLC – while SLC mode is used primarily as a write cache. This means the read performance you experience day-to-day is determined by the native cell type, not the SLC cache speed. Read performance from the base flash is inherently slower than from SLC-mode cells, both because of the additional sensing steps and because of heavier error correction demands on higher-density cells.

Controllers can optimize read performance through calibration techniques, including adjusting reference voltage thresholds over the drive's lifetime as cells wear and voltage distributions shift. Read retry tables and, in some cases, machine learning-based calibration help maintain read performance as the flash ages.

Error Correction: Keeping Your Data Safe

Error correction is essential because NAND flash is inherently imperfect. Cells wear out over program/erase cycles, voltage levels drift over time, neighboring cells can interfere with each other, and even reading data can slightly disturb adjacent cells. Without robust error correction, SSDs would be unusable within a fraction of their rated lifespan.

Modern SSDs use low-density parity-check (LDPC) error correction codes, which replaced the older BCH (Bose-Chaudhuri-Hocquenghem) codes used in earlier drives. The practical advantage of LDPC is its ability to perform both hard-decision and soft-decision decoding. Hard-decision decoding is fast but limited – it reads each cell as being in one state or another with no ambiguity. Soft-decision decoding is more powerful: it recognizes that a cell's voltage might be on the boundary between two states and uses probabilistic methods to determine the most likely value.

In practice, the controller tries hard-decision decoding first because it's faster. Only when that fails does it fall back to soft-decision decoding, using progressively more sensing levels to resolve ambiguous cells. This approach keeps performance high for healthy data while still being able to recover marginal data when needed. The trade-off is latency – soft-decision decoding takes more time, which is why heavily worn SSDs can show increased read latencies.

If ECC fails entirely for a particular page, the drive can still attempt to recover data through parity information distributed across the NAND (similar in concept to a RAID stripe). This is a last resort, but it provides an additional safety net. The detailed mechanics of LDPC decoding and multi-step sensing are covered in Chapter 9.

The Program/Erase Cycle

NAND flash must be erased before it can be rewritten. This erase-then-program sequence is called a program/erase cycle, or P/E cycle, and counting these cycles is how flash endurance is measured. Each cycle causes a small amount of physical damage to the cell – the high voltages involved in erasing gradually degrade the cell's ability to hold a precise charge. After enough cycles, the cell can no longer reliably distinguish between voltage levels, and it's effectively worn out.

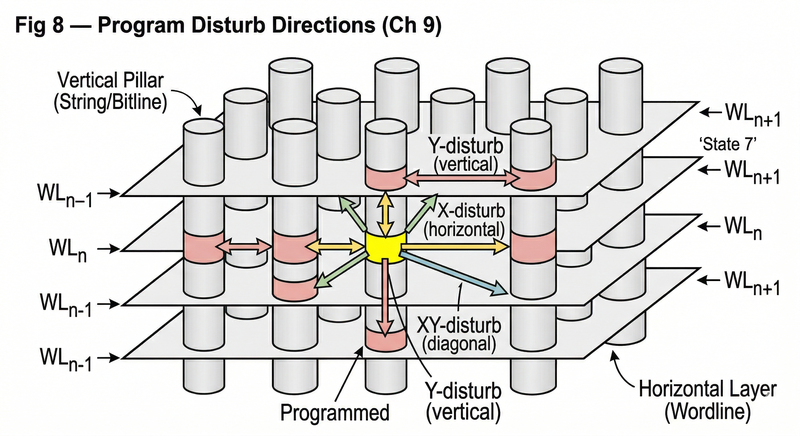

The damage from programming and erasing far exceeds anything caused by reading, though reading does introduce its own minor effects (read disturb) that accumulate over time. This is why endurance specifications – typically expressed as terabytes written (TBW) or drive writes per day (DWPD) – are based on write volume, not read volume.

A key constraint is that erases happen at the block level, not the page level. A block contains many pages (the exact number varies by flash generation, but modern blocks are large – hundreds of pages). If the controller needs to update a single page within a block, it can't just erase and rewrite that page. It has to read out all the valid pages in the block, erase the entire block, and write everything back. This is the root cause of write amplification – the drive ends up writing more data to flash than the host actually sent. Managing write amplification through smart garbage collection and wear leveling is one of the FTL's most important jobs and is covered in Chapter 4.

Programming within a block is normally done sequentially – page after page in order – because this produces consistent performance and minimizes disturb effects on adjacent cells. When data flows through the SLC cache first and is then folded to the base TLC or QLC, this sequential write pattern is maintained. Direct-to-NAND writes (bypassing the SLC cache) tend to be more random, which can increase write amplification. The relationship between SLC caching, folding, and sustained write performance is covered in the next chapter.

Endurance varies significantly by cell type. SLC flash can endure on the order of 100,000 P/E cycles, MLC around 3,000–10,000, TLC around 1,000–3,000, and QLC around 500–1,000. These are rough figures – actual endurance depends on the specific flash generation, the ECC implementation, and the controller's wear management. In practice, consumer SSDs typically outlast their warranty period by a wide margin under normal workloads.

How SSDs Organize and Move Data

NAND flash is organized into a hierarchy designed for parallel access. Understanding this hierarchy – and the mechanisms the controller uses to manage data within it – explains most of the performance and endurance characteristics you'll see in practice.

NAND Topology: The Storage Hierarchy

NAND is organized from large to small: packages, dies, planes, blocks, and pages. Each level enables a form of parallelism that the controller exploits for performance.

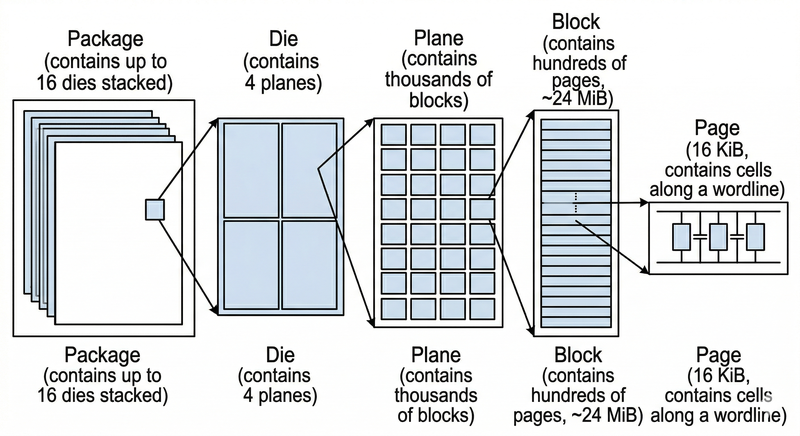

Figure 2: NAND flash storage hierarchy – each level nests within the previous, from package down to individual pages.

Package

The NAND package is the physical chip you can see on the PCB. Each package contains one or more dies stacked vertically, with a practical limit of sixteen dies per package (16DP) due to height, signal integrity, and yield constraints. The dies are stacked in an offset pattern to accommodate wiring, and dummy dies may be added to prevent warpage. M.2 2280 drives typically have two to eight packages, on one or both sides of the board.

With current flash densities at 512 Gb to 1 Tb per die, a single package can hold one to two terabytes. The number of chip enable (CE) pins on each package determines how the controller can independently address the dies inside.

Die

The die is the logical unit of flash that the controller directly interfaces with. Current TLC dies are commonly 512 Gb to 1 Tb, and QLC dies can exceed 1 Tb, translating to 64–128 GiB or more per die. Peak consumer drive performance is usually reached with about four dies per channel – the controller can interleave operations across dies so that while one is busy programming, another is ready for the next command.

A die with enough accumulated bad blocks can effectively brick a consumer SSD, which is one reason spare blocks and wear leveling matter.

Plane

Each die has multiple planes for internal parallelism. Two-plane dies were standard until recently; four-plane (quad-plane) designs are now typical, and six-plane (hexa-plane) dies exist. Multi-plane operations allow the controller to access the same plane offset across multiple dies for a "superplane" effect, and the flash can access planes independently depending on the workload. More planes per die means more potential bandwidth, up to the limits of the channel and controller.

Certain architectures also use sub-planes – divisions within a plane – to improve performance for smaller I/O operations.

Block

Each plane contains thousands of blocks. The block is the smallest unit of NAND that can be erased, which makes it a critical granularity for garbage collection and wear management. Modern blocks are large – on the order of 24 MiB for current flash – and block size has been growing with layer count and density. Larger blocks mean more data is affected by each erase, which has implications for write amplification and wear.

QLC blocks are larger than TLC blocks at equivalent die density because each cell stores more bits.

Page

The page is the smallest unit the SSD can write. Modern TLC flash typically has 16 KiB physical pages. Multi-bit cells (TLC, QLC) have multiple pages per wordline – a TLC wordline has three pages (one per bit: LSB, CSB, MSB) with different programming characteristics and sensitivities. The lower pages (LSB) are faster and more reliable to program; upper pages (MSB) take longer and are more vulnerable to errors.

The 16 KiB physical page is larger than the typical 4 KiB filesystem block, so each physical page contains four logical sub-pages. The FTL manages this mismatch, coalescing smaller writes where possible and performing read-modify-write operations when needed.

Superblock and Superpage

The controller groups blocks with the same offset across all dies and planes into a superblock, and pages with the same offset across a superblock form a superpage. The controller writes one superpage at a time for maximum parallelism – filling an entire superblock sequentially before moving to the next. This grouping also enables parity protection across the constituent blocks, similar in concept to RAID striping, which provides a recovery mechanism if individual blocks go bad.

Channels and Interleaving

The controller communicates with the flash packages over channels, each with its own dedicated bandwidth. Consumer controllers typically have four to eight channels. Within each channel, the controller can switch between banks of dies so that multiple are active simultaneously – this is interleaving.

The performance benefit comes from overlapping operations. While one die is busy with a relatively slow program operation, the controller can issue commands to other dies on the same channel or different channels. More dies per channel means more interleaving opportunities, up to the controller's saturation point. Ideally you want at least two dies per channel, with four being the sweet spot for most consumer controllers. Beyond that, the returns diminish.

This is why lower-capacity drives are often slower than their higher-capacity siblings – fewer dies means less parallelism. A 500 GB drive with eight dies across four channels will generally outperform a 250 GB version with only four dies across those same channels.

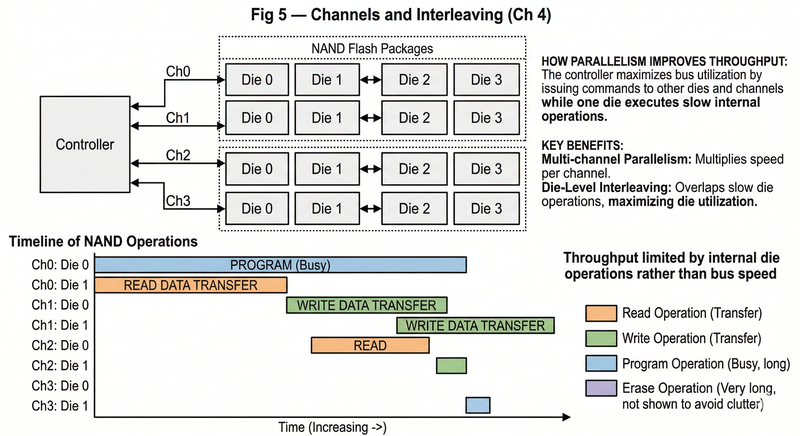

Figure 5: The controller maximizes throughput by interleaving operations across channels and dies, overlapping slow program operations with reads and writes on other dies.

TRIM and Garbage Collection

TRIM

TRIM is a command (technically an ATA command, with UNMAP as the SCSI equivalent for USB-attached drives) that tells the SSD which blocks of data the operating system no longer needs. When you delete a file, the OS marks that space as free in the filesystem, but the SSD has no way to know unless it's told explicitly. TRIM provides that notification.

Once the SSD knows which data is stale, it can factor that into its garbage collection decisions – reclaiming those blocks without having to preserve their contents. Modern operating systems run TRIM automatically, typically once a week in Windows. Formatting a drive will effectively TRIM the entire device within minutes.

TRIM is less critical on modern drives than it once was because garbage collection has become much more aggressive, but it still contributes to maintaining consistent performance and endurance over time.

Garbage Collection

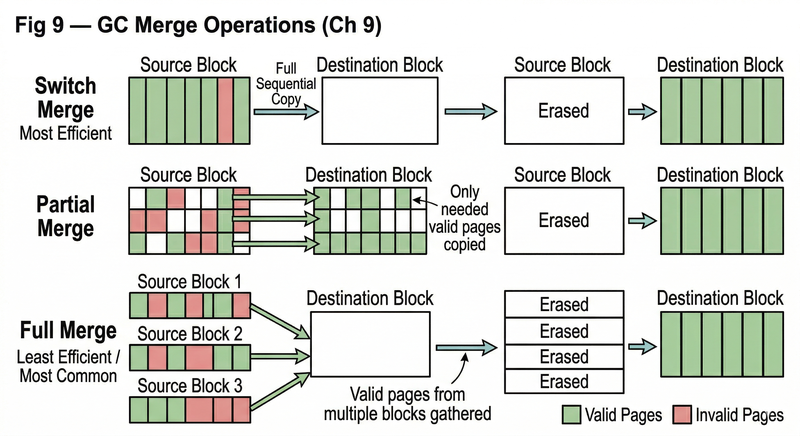

Because NAND must be erased at the block level before it can be rewritten, the SSD needs a way to reclaim partially-used blocks. This is garbage collection. The process works by reading the valid pages from one or more partially-filled blocks, writing them into a new block, and then erasing the old blocks to make them available again.

Garbage collection typically runs in the background during idle time, keeping a pool of erased blocks ready for new writes. When the drive is under heavy load or nearly full, GC becomes more constrained – there are fewer idle windows and fewer free blocks to work with, which can impact write performance. This is one practical reason to avoid filling an SSD completely.

The efficiency of garbage collection – how it selects blocks to clean, when it runs, how it coordinates with wear leveling – is a significant differentiator between controllers. The detailed algorithms are covered in Chapter 9.

Wear Leveling

Wear leveling ensures that program/erase cycles are distributed evenly across all blocks rather than concentrating on a few. Without it, blocks that host frequently-updated data would wear out while blocks holding static data (your OS files, applications that rarely change) would sit nearly untouched.

There are two basic approaches. Dynamic wear leveling writes new data to the least-worn free block, which naturally spreads wear across blocks that are actively being written. Static wear leveling goes further by periodically relocating static data from low-wear blocks to higher-wear blocks, freeing up the low-wear blocks for active use. Most modern drives use both.

The combination of garbage collection and wear leveling – deciding which blocks to clean, where to put the data, and how to balance wear across the device – is one of the FTL's core responsibilities.

SLC Caching

Most consumer SSDs use an SLC cache as a fast write buffer. The drive takes its base flash – TLC or QLC – and operates a portion of it in single-bit (SLC) mode, known as pseudo-SLC or pSLC. Writing one bit per cell instead of three or four is much faster and more durable, but it uses three to four times the physical capacity for the same amount of user data.

The SLC cache absorbs incoming writes at high speed. The data is then migrated to the base flash later, typically during idle time. This is why you'll see high sequential write speeds on a fresh drive that drop once the cache is exhausted.

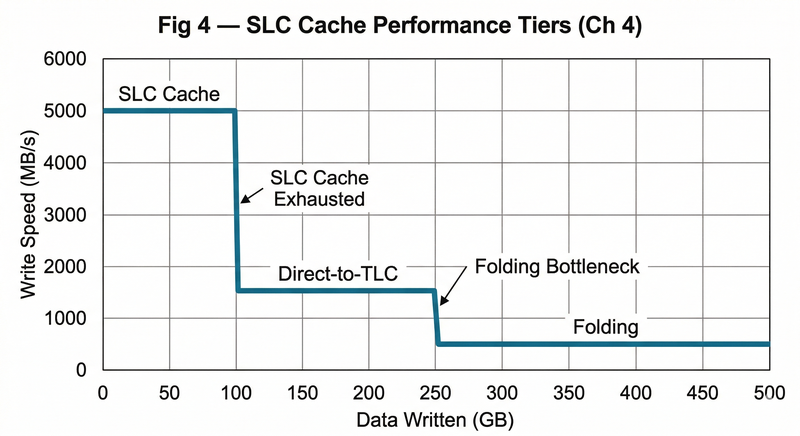

Figure 4: Sequential write performance drops in tiers as the SLC cache fills – first to direct-to-TLC speeds, then to the folding-bottlenecked state.

Static SLC

Static pSLC is a fixed portion of the drive permanently reserved for SLC-mode operation. It lives in the over-provisioned space outside the user-accessible area, so it's always available regardless of how full the drive is. Static SLC provides consistent performance and has much higher endurance than the base flash – often an order of magnitude more P/E cycles – because it operates in the simpler single-bit mode. The trade-off is that it reduces the total capacity available for user data.

Dynamic SLC

Dynamic pSLC uses empty user space as a temporary SLC cache. As the drive fills up, the dynamic SLC pool shrinks because that space is needed for actual data. This is why a nearly-full SSD often has significantly worse burst write performance than the same drive at 50% capacity – there's less room for SLC caching.

Dynamic SLC shares a wear zone with the base flash, and the conversion process (SLC to native mode) introduces additional write amplification. For TLC, folding SLC data to native mode has an amplification factor of roughly 3x, since three SLC blocks consolidate into one TLC block.

Hybrid

Many drives combine static and dynamic SLC. A fixed static pool provides a baseline of fast, always-available cache, while dynamic SLC expands the cache when space permits. Samsung's TurboWrite is a well-known implementation of this approach. The balance between static and dynamic portions varies by drive and is a deliberate design trade-off between consistency and peak burst performance.

What Happens When the Cache Fills

Once the SLC cache is full, the drive must handle incoming data differently. The specific behavior depends on the drive's design, and this is where performance differences between drives become most visible.

Direct-to-NAND

Modern drives can bypass the SLC cache and write directly to the base flash (TLC or QLC). This gives you the native flash performance – slower than SLC mode but still reasonable on a good TLC drive. Direct-to-NAND writes tend to have higher write amplification than SLC-then-fold because the write pattern is more random, and there's a higher risk of data loss from power failure since upper pages have longer program times.

Folding

Folding is the process of migrating data from SLC blocks to the base flash. Multiple SLC blocks are compressed into a single TLC or QLC block, written sequentially. This happens on-die without direct controller intervention – a form of direct memory access. Sequential writes during folding keep write amplification low, but the process takes time and can create a performance bottleneck while it's running.

The "folding state" is the sustained write scenario where the drive's incoming write speed is limited by how fast it can empty the SLC cache. This is typically the lowest-performance tier on drives with large SLC caches.

Performance Tiers

Many drives have more than two performance levels. A common pattern is: (1) SLC cache speed, (2) direct-to-TLC speed after the cache fills, and (3) a reduced speed when the drive is simultaneously writing new data and folding SLC data in the background. Drives with large dynamic SLC caches, QLC-based drives, and DRAM-less drives are most likely to show pronounced tier drops.

The severity of these transitions depends on the drive's design, the fill state, and the workload. In everyday consumer use – which is bursty rather than sustained – most drives never leave their SLC cache tier. Sustained write benchmarks show the worst case, which is useful for understanding the drive's limits but not representative of typical usage.

Over-Provisioning and Free Space

Over-provisioning (OP) is flash capacity reserved by the drive for internal use – it's not visible to the user. This reserved space provides a pool of free blocks for garbage collection, wear leveling, and spare block replacement.

How It Works

Raw flash capacity is binary (powers of two), but drives are marketed in decimal. A drive with 512 GiB of raw flash sold as a "500 GB" drive has about 10% total OP – the difference between the binary capacity and the marketed size, plus any additional reservation. A "480 GB" version of the same flash would have roughly 15% OP. Drives with more OP have more room for the controller to work with, which can improve sustained write performance and endurance, with diminishing returns.

Beyond the marketed OP, the drive also reserves space for spare blocks, ECC data, static SLC cache, and other metadata. The exact allocation varies by manufacturer and isn't always disclosed.

Dynamic Over-Provisioning

Modern controllers treat any free user space as additional dynamic OP, thanks to TRIM. When the OS tells the drive that blocks are no longer in use, the controller can reclaim that space for internal operations. This means that simply leaving some space free on the drive provides a real benefit – more room for garbage collection, less write amplification, and better sustained performance.

This is especially relevant for DRAM-less and QLC-based drives, which benefit more from extra free space. As a general practice, avoiding filling any SSD past about 80–90% helps maintain consistent performance.

Interfaces and Protocols

An SSD needs two things to communicate with your system: a protocol (the language) and an interface (the physical connection). These determine the maximum bandwidth, latency, feature set, and compatibility of the drive.

SATA and AHCI

SATA (Serial ATA) is the older interface standard, paired with the AHCI (Advanced Host Controller Interface) protocol. SATA SSDs typically come in 2.5" form factors and connect through the same ports that hard drives use. AHCI was designed in the era of spinning disks and exposes features like Native Command Queuing (NCQ), but it was never optimized for the characteristics of solid state storage.

SATA tops out at about 600 MB/s of usable bandwidth – more than enough for hard drives, but a hard ceiling for SSDs. A decent SATA SSD will saturate this interface easily. SATA drives are still common in older systems and as budget options, and they remain useful where NVMe isn't supported or where the workload doesn't demand higher throughput. For new builds, though, NVMe has effectively replaced SATA for primary storage.

PCIe and NVMe

NVMe (Non-Volatile Memory Express) is the protocol designed specifically for solid state storage, running over PCI Express (PCIe). The advantages over AHCI are significant: lower access latency, deeper command queues, more efficient interrupt handling, and direct communication with the CPU over the PCIe bus rather than going through a SATA controller.

PCIe bandwidth scales with the generation and lane count. A PCIe 3.0 x4 drive can reach roughly 3.5 GB/s, PCIe 4.0 x4 doubles that to about 7 GB/s, and PCIe 5.0 x4 doubles again to approximately 14 GB/s. Today, PCIe 4.0 drives are the mainstream sweet spot for most consumers, while PCIe 5.0 drives target the high end.

Modern Windows systems use the Microsoft inbox NVMe driver (StorNVMe), and manufacturers have largely moved away from proprietary drivers – Samsung dropped its NVMe driver starting with the 990-series, for example. DirectStorage 1.0, which allows games to load assets directly from NVMe storage to the GPU with minimal CPU overhead, also works with the inbox driver.

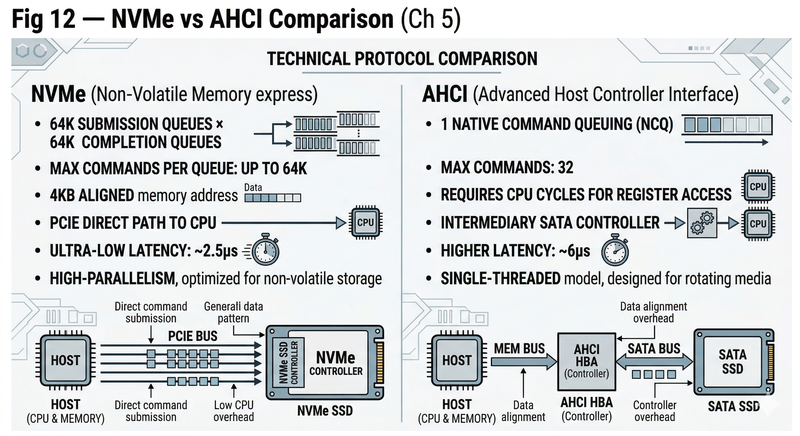

Figure 12: NVMe provides dramatically lower latency and deeper parallelism than AHCI, with a direct PCIe path to the CPU.

Other protocols exist in the storage space: SAS (Serial Attached SCSI) is common in enterprise servers, and UASP (USB Attached SCSI Protocol) is used for external drives over USB. These are relevant in specific contexts but PCIe/NVMe is the consumer standard.

NVMe 2.0+ and What's New

NVMe 2.0, released in 2021, restructured the specification from a monolithic document into a library of specifications – a base spec, separate command sets, and a management interface. The current major base revision is 2.1, with ongoing revision change documents published by NVM Express.

The most significant additions for SSD performance and endurance are:

Zoned Namespaces (ZNS) organize the drive's address space into zones that must be written sequentially. This aligns the host's write pattern with how NAND actually wants to be programmed, reducing the garbage collection burden and write amplification. ZNS requires application-level awareness, which has limited its adoption outside of datacenter environments.

Flexible Data Placement (FDP) is a ratified standard (TP4146) that takes a more pragmatic approach than ZNS. FDP lets the host provide hints about data placement – grouping data with similar lifetimes together – without requiring the strict sequential write model of ZNS. This reduces write amplification while being easier for applications to adopt. FDP is likely to see broader adoption than ZNS, including potentially in consumer drives.

Other additions include NVMe Management Interface (NVMe-MI) for device management and Controller Memory Buffer (CMB) improvements, though these are primarily enterprise-relevant.

Form Factors

2.5" is the standard form factor for SATA SSDs and also used by some U.2 NVMe drives. It connects via a SATA data and power connector, making it a drop-in replacement for laptop or desktop hard drives.

M.2 is the dominant form factor for NVMe consumer SSDs. M.2 drives come in various dimensions defined by width and length – 2280 (22 mm wide, 80 mm long) is by far the most common for desktops and laptops. Drives can be single-sided or double-sided, which matters for laptops with tight clearance – some accept only single-sided drives. M.2 also supports SATA through its keying system (B-key for SATA, M-key for PCIe), so an M.2 slot doesn't necessarily mean NVMe – check the keying and the motherboard specifications.

Figure 6: M.2 keying notches in B and M positions. B-key (pins 12–19 removed) indicates SATA; M-key (pins 59–66 removed) indicates PCIe/NVMe. B+M keyed drives fit both but are limited to SATA or ×2 PCIe. (Diagram by NikNaks, CC BY-SA 3.0, via Wikimedia Commons.)

U.2 and U.3 (SFF-8639 connector) support up to four PCIe lanes and are compatible with both NVMe and SAS. These are primarily used in enterprise and workstation contexts. U.3 is a unified connector that supports SAS, SATA, and NVMe on the same backplane.

EDSFF (Enterprise and Data Center Standard Form Factor) has become the standard in datacenter and hyperscale deployments, with E1.S and E3.S widely adopted. These form factors are optimized for thermal management, hot-swap capability, and high-density rack installations. They're not relevant for consumer builds but are worth knowing about if you work with server hardware.

Adapters exist to convert between many of these form factors – M.2 to PCIe slot, M.2 to U.2, and so on – as long as the protocol is compatible.

External Enclosures and Bridge Chips

External SSDs and enclosures typically use a bridge chip to translate between the drive's native protocol (NVMe or SATA) and the external interface (USB or Thunderbolt). This translation introduces some overhead, particularly for latency-sensitive operations like 4K random writes. Bandwidth is also capped by the external interface – USB 3.2 Gen 2 at 10 Gbps, USB 3.2 Gen 2x2 at 20 Gbps, Thunderbolt 3/4 at 40 Gbps.

Bridge chips have their own firmware, and some features may not pass through the translation. HMB, for example, typically doesn't work through a bridge chip since the drive can't access the host's system memory over USB. TRIM support (via the SCSI UNMAP command over UASP) depends on the bridge chip and OS support.

Some newer controllers combine flash controller and bridge functionality in a single chip – Silicon Motion's SM2320 is one example – which can reduce overhead and board complexity for purpose-built portable SSDs.

USB4 and Thunderbolt 4, both based on the same underlying protocol, are increasingly common for external storage. USB4 supports up to 40 Gbps (matching Thunderbolt 3/4) with USB4 Version 2.0 extending to 80 Gbps. For external SSDs, USB4/Thunderbolt 4 provides enough bandwidth to approach internal NVMe performance for sequential workloads, though latency overhead still affects small random I/O. If you're considering an external NVMe enclosure, USB4 or Thunderbolt is the connection to target.

Encoding and Bandwidth Overhead

Interface bandwidth isn't entirely available for data. Encoding schemes add overhead that reduces the usable throughput.

SATA and PCIe 2.0 use 8b/10b encoding, which means 20% of the bandwidth goes to encoding overhead – every 8 bits of data requires 10 bits on the wire. PCIe 3.0 and later use 128b/130b encoding, reducing the overhead to roughly 1.5%. This is one reason the jump from PCIe 2.0 to 3.0 more than doubled effective bandwidth despite less than doubling the raw signaling rate.

PCIe 6.0, finalized in 2022, switches from NRZ (non-return-to-zero) to PAM4 (pulse-amplitude modulation) signaling to double the data rate without doubling the frequency. Enterprise PCIe 6.0 SSDs are shipping, but consumer drives aren't expected until roughly 2028–2030. PCIe 7.0 is in development.

USB connections carry their own overhead beyond encoding – protocol-level latency typically reduces throughput by around 15% compared to the theoretical maximum. Thunderbolt 3/4 allocates 22 Gbps of its 40 Gbps total bandwidth for data (the rest is reserved for display and other protocols), giving a practical ceiling of about 2.75 GB/s for storage.

Choosing the Right SSD

Any SSD is a significant improvement over a mechanical hard drive. That said, there's a wide range of drives on the market, and the right choice depends on your system, your budget, and what you're actually doing with the drive. Breaking down those factors before you start shopping saves a lot of confusion.

Identifying Your Needs

Form Factor

Start with your system. Check your motherboard manual or laptop specifications to see what's available: 2.5" SATA bays, M.2 slots, or both. If your M.2 slot exists, determine whether it supports SATA, PCIe (NVMe), or both – the keying and chipset routing matter. If you're limited to 2.5" bays, you're looking at SATA drives exclusively. If you have an M.2 slot with PCIe support, NVMe is the way to go for a new build.

Also consider the physical constraints. Desktop cases generally have no issues, but some laptops only accept single-sided M.2 drives due to clearance. Thermal conditions matter too – a drive crammed into a poorly ventilated laptop compartment will behave differently than one under a motherboard heatsink with active airflow.

Budget

You're generally looking for the best balance of performance per dollar and capacity per dollar. The SSD spreadsheet and buying guide are maintained as companion resources to help with specific drive comparisons. A few patterns hold consistently: Samsung charges a premium for its brand and vertical integration. QLC drives favor capacity at the expense of sustained write performance. TLC drives are better for mixed or write-heavy workloads. DRAM-less drives save cost at the expense of consistency under load.

PCIe 5.0 drives now exist and offer impressive sequential throughput, but PCIe 4.0 remains the value sweet spot for most users. The real-world performance gap in typical client workloads is narrow – most of the benefit shows up in sustained sequential transfers, which are a small fraction of daily use.

Don't fixate on the "up to" sequential speeds printed on the box. Those numbers are addressed in the next section.

Workload and Role

Most people just need a reliable SSD for their operating system, applications, and games. Almost any current drive handles that well. But if your workload has specific characteristics, it's worth tailoring your choice:

• Laptop on battery: Prioritize power efficiency, especially at idle. DRAM-less drives and newer low-power controllers (like those on 6nm process nodes) can make a measurable difference in battery life.
• Content creation or development: Favor drives with consistent performance under mixed workloads – a good TLC drive with DRAM and reasonable sustained write speeds.
• NAS caching or write-heavy workloads: Look at steady-state performance and endurance rather than burst speeds. Static SLC cache sizes matter more here than dynamic SLC capacity.
• Game storage: Sequential read performance is the primary concern. Most current NVMe drives are more than adequate, and any PCIe 3.0 or 4.0 NVMe drive clears the performance thresholds for the vast majority of titles. That said, modern games using DirectStorage with GPU decompression can sustain read demands that exceed SATA's ~550 MB/s ceiling, particularly at 4K with high-resolution texture streaming. At lower resolutions, SATA is still viable; at 4K with demanding titles, NVMe becomes a practical requirement rather than a theoretical one. The bottleneck is shifting from pure sequential bandwidth toward sustained throughput under decompression workloads.

Understanding Marketed Specs vs. Real-World Performance

The speeds listed on a drive's product page are marketing numbers. They represent the best-case scenario – typically large sequential transfers at high queue depth, reading from an SLC cache. You will rarely see these numbers in daily use.

Most client workloads operate at low queue depth (QD1–QD4) with small, random I/O patterns. What actually determines how responsive your system feels is latency at low queue depths, particularly for 4K random operations. This is the metric that governs how fast applications launch, how snappy your OS feels, and how quickly file operations complete. It's also the metric where the difference between a PCIe 3.0 drive and a PCIe 5.0 drive is smallest.

Sequential throughput matters for large file transfers – copying video files, installing games, writing disk images – but even here, you're often limited by the source, the filesystem, or the CPU's ability to feed the drive. The drive's SLC cache and single-die performance ceiling are usually the bottleneck, not the interface bandwidth.

The practical takeaway: you may not feel a subjective difference between two NVMe SSDs even if their marketed sequential speeds are an order of magnitude apart. The things that do create a noticeable difference are the presence or absence of DRAM, the quality of the controller's firmware, and the SLC caching strategy – none of which are advertised on the box.

Warranty, TBW, and Endurance

SSD warranties are defined by two limits: a time period (typically three or five years) and a Total Bytes Written (TBW) rating. Whichever limit is hit first applies.

For consumers, TBW is rarely the binding constraint. A typical 1 TB TLC drive rated for 600 TBW would need about 330 GB of writes per day, every day, for five years to hit that limit. Normal desktop usage is nowhere near this. TBW is more relevant for prosumer and write-heavy workloads.

From TBW you can derive Drive Writes Per Day (DWPD): the number of full drive writes per day within the warranty period.

DWPD = TBW / (365 × Years × Capacity in TB)

DWPD is useful if you have a minimum expected write volume – it tells you whether a drive's endurance matches your workload.

To put TBW in perspective with a concrete example: a 1 TB drive rated for 600 TBW over a five-year warranty gives you a DWPD of about 0.33 – meaning you can write roughly 330 GB per day, every day, for five years before hitting the warranted limit. A typical desktop user writes somewhere between 10–40 GB per day (OS operations, application data, downloads, browser cache). At 30 GB/day, that 600 TBW drive would last over 50 years of writes – well beyond any other component's lifespan. Even at 100 GB/day, which would be heavy consumer use, you're looking at over 16 years. TBW anxiety for normal consumer usage is almost always unwarranted.

The actual flash endurance is typically much higher than the warranted TBW, since manufacturers build in significant margin. TBW should never be the primary factor in a consumer purchasing decision.

Five-year warranties are generally the better indicator of a manufacturer's confidence in the drive.

Bill of Materials and Hardware Swaps

A drive's bill of materials (BOM) is the list of components that go into it: controller, flash, DRAM (if present), and supporting chips. For some drives, particularly budget models, the BOM is not fixed. Manufacturers may swap components depending on supply availability – changing the flash from one vendor to another, or substituting a different DRAM chip – without changing the model number.

This practice means two units of the "same" drive can have meaningfully different performance characteristics. The most notable recent example was the WD SN550, where a post-launch BOM change significantly reduced sustained write performance and prompted widespread consumer backlash.

Vertically-integrated manufacturers like Samsung, which produce their own flash and controllers, have more control over BOM consistency. Brands that source components externally are more likely to swap. If BOM consistency matters to you, check reviews and community reports (forums, r/NewMaxx) for the specific model – hardware swaps are usually identified quickly after they occur.

Counterfeit and Fake SSDs

A more extreme version of the BOM problem is outright counterfeit drives. These are typically sold through third-party marketplace sellers and feature manipulated firmware that reports a larger capacity than the flash actually supports. A drive advertised as 2 TB might contain 128 GB of actual flash – it will appear to work until you exceed the real capacity, at which point data is silently lost or corrupted.

Warning signs include prices significantly below market rate, unknown brand names with no verifiable history, and listings that lack specific controller or flash specifications. Tools like H2testw (Windows) or f3 (Linux) can verify that a drive's actual usable capacity matches its reported capacity by writing and reading back data across the full address space. If you're buying from a marketplace seller rather than an authorized retailer, testing a new drive before trusting it with important data is a reasonable precaution.

Motherboard Compatibility

Your motherboard determines what drives you can use and how well they'll perform. A few things to check:

M.2 slot support: Not all M.2 slots are equal. Some support only SATA, some only NVMe (PCIe), and some support both. The keying (B-key, M-key, or B+M) tells you the physical compatibility, but the chipset routing determines the protocol. Check the manual.

Lane allocation and sharing: On many motherboards, M.2 slots share PCIe lanes or SATA ports with other connectors. Using a particular M.2 slot might disable a SATA port or reduce a PCIe x16 slot to x8. With multiple NVMe drives, the total upstream bandwidth from the chipset to the CPU can become a bottleneck, even if each individual slot has sufficient downstream bandwidth. This is primarily a concern for motherboards with three or more M.2 slots.

NVMe boot support: Most motherboards from the last several years support NVMe booting natively through UEFI. Older boards may require a BIOS modification or a UEFI wrapper like Clover to boot from NVMe. If you're adding NVMe to an older system via a PCIe adapter card, verify boot support before purchasing.

PCIe generation: A PCIe 5.0 drive in a PCIe 4.0 slot will work but be limited to PCIe 4.0 speeds, and vice versa. PCIe 5.0 M.2 slots for storage are available on AMD AM5 platforms (X670E, X670, and B650E, with optional support on B650) and Intel 700-series and later chipsets, typically limited to one or two slots connected directly to the CPU.

SSD Health, Maintenance, and Software

SSDs require very little maintenance compared to hard drives – no defragmentation, no head parking, no spindle concerns. But there are a few things worth understanding to keep your drive healthy and performing well over its lifespan.

SMART Monitoring

SMART (Self-Monitoring, Analysis and Reporting Technology) is a built-in health monitoring system on all modern storage devices. Your SSD continuously records values for temperature, total data written, error rates, wear-leveling counts, and other parameters. Reading this data gives you a picture of the drive's health and can provide early warning of potential failure.

Tools like CrystalDiskInfo, Hard Disk Sentinel, and smartmontools can read SMART data on both SATA and NVMe drives. NVMe drives report a standardized set of health attributes through the NVMe health information log, which is more consistent across manufacturers than the vendor-specific SMART attributes on SATA drives.

The most useful SMART values for consumers are the percentage of life used (or remaining), the total data written, and any critical warnings. A drive reporting critical warnings or rapidly increasing error counts should be backed up and replaced. Beyond that, periodic SMART checks are good practice but not something most users need to obsess over.

Temperature

SSD thermals are more nuanced than "keep it cool." NAND flash actually programs better when warm – heat reduces program variation, leading to tighter voltage distributions and fewer errors during writes. However, heat also accelerates charge leakage, which hurts data retention over time. The ideal thermal profile would be warm during writes and cool during storage, but that's not how real systems work.

Controllers are the more temperature-sensitive component. Most are designed to operate in the 0–70°C range, with thermal throttling kicking in around 70–80°C. The composite temperature reported by NVMe drives is what triggers power-state-based throttling, and it may factor in both controller and NAND temperatures.

For consumer use, the practical advice is straightforward: if your system has adequate airflow, thermal management is mostly an aesthetic decision – a motherboard heatsink or aftermarket heatspreader is fine. If the drive is in a poorly ventilated laptop compartment or an HTPC with restricted airflow, additional cooling may be warranted to prevent throttling under sustained workloads. Don't worry about cooling the NAND specifically; the controller is what throttles.

The cross-temperature effect is worth mentioning: data written at one temperature and read at a significantly different temperature can produce higher error rates. This is primarily a concern in enterprise environments with extreme temperature swings, not typical consumer use.

TRIM and OS Optimization

Modern operating systems handle SSD optimization automatically. Windows detects SSDs and schedules TRIM (called "optimize" in the UI) on a weekly basis by default. This tells the drive which blocks are no longer in use, allowing the controller to reclaim them during garbage collection. You generally don't need to touch this.

Defragmenting an SSD is unnecessary and counterproductive – SSDs have no seek time penalty for fragmented data, and defragmentation writes data needlessly. Windows knows this and runs TRIM instead of defrag when it detects an SSD. If you're using third-party defrag software, make sure it isn't defragmenting your SSD.

You can verify that TRIM is working through fsutil behavior query DisableDeleteNotify in an elevated command prompt – a result of 0 means TRIM is enabled. Your drive manufacturer's toolbox software, if available, can also confirm TRIM support.

Secure Erase and Sanitize

There are two levels of SSD wiping: secure erase and sanitize. A secure erase wipes the drive's mapping data, making the data inaccessible through normal means. A sanitize goes further by also erasing the underlying flash blocks, making data recovery effectively impossible.

A standard format in Windows sends TRIM to the drive, which achieves a similar result to a secure erase – the mapping is cleared and the drive will reclaim the blocks. For most consumer purposes, a full format followed by a few minutes of idle time (for the drive to process the TRIM and erase blocks) is sufficient.

For more thorough wiping – selling a drive, decommissioning a system with sensitive data – use the manufacturer's toolbox if it offers a sanitize option. Alternatively, on NVMe drives, the nvme-cli tool under Linux provides both nvme format and nvme sanitize commands. The motherboard BIOS/UEFI may also offer a secure erase option.

Modern drives generally perform a full sanitize even when issued a secure erase command. For self-encrypting drives (SEDs), a crypto-erase – which destroys the encryption key, rendering all encrypted data unreadable – is the fastest and most complete option.

Security and Encryption

Self-encrypting drives (SEDs) automatically encrypt data using a hardware encryption engine, typically AES-256 under the TCG Opal 2.0 specification. The encryption is transparent – data is encrypted on write and decrypted on read, with no performance penalty. Access is controlled through an authentication key.

While most SSD controllers technically support Opal, many consumer drives don't enable the functionality. More importantly, Microsoft stopped trusting hardware SED implementations in late 2019 after security researchers found vulnerabilities in several drives' encryption implementations. BitLocker now defaults to software encryption rather than deferring to the drive's hardware encryption.

The practical implication: if you need full-disk encryption, use BitLocker (Windows) or LUKS (Linux) with software encryption. Don't rely on the drive's hardware encryption alone.

Backup Strategies

Follow the 3-2-1 backup rule: three copies of your data, on two different types of media, with at least one copy offsite (cloud storage, a drive at another location). SSDs are reliable but not infallible – controller failures, firmware bugs, and power events can cause sudden data loss without warning. SMART monitoring helps but doesn't catch everything.

Power Management

NVMe drives support Autonomous Power State Transition (APST), which allows the drive to move between power states based on idle time. Lower power states save energy but add latency when the drive needs to wake up for an I/O request. SATA drives have an equivalent in Aggressive Link Power Management (ALPM).

Power management behavior varies between desktop and laptop configurations. Many desktop systems don't allow NVMe drives to reach their lowest power states, which means laptop battery life testing can show different results than desktop power measurements. The OS negotiates power states with the drive based on reported capabilities, but the actual behavior can vary – thermal throttling, for example, may manifest as forced transitions to lower power states.

For laptop users, power efficiency differences between drives can be measurable. Newer controllers on smaller process nodes (6nm and below) tend to idle more efficiently, and DRAM-less designs inherently draw less power since there's no DRAM to keep refreshed.

Bad Blocks

Every SSD has some bad blocks from the start. Original bad blocks (OBB) are identified and remapped during manufacturing – flash quality might guarantee 95%+ good blocks, with the rest remapped to spare blocks. Growth bad blocks (GBB) develop over the drive's lifetime as cells wear from programming and erasing. The controller monitors blocks continuously and retires them as needed, substituting spare blocks.

This process is transparent to the user. As long as spare blocks remain available, bad blocks have no user-visible impact. When spare blocks run out, the drive is nearing end of life – this is typically reflected in the SMART "percentage used" indicator approaching 100%.

Free Space and Performance

All SSDs slow down when fuller. The mechanism is straightforward: less free space means fewer free blocks for garbage collection, less room for SLC caching, and more overhead for the controller to manage writes. The severity depends on the drive's design – QLC drives, DRAM-less drives, and drives with large dynamic SLC caches are hit hardest.

A reasonable guideline is to keep at least 10–20% of user-accessible space free. For most standard TLC drives with DRAM, even 5–10% free is adequate. For DRAM-less or QLC drives, staying below 80% capacity helps maintain more consistent performance.

The benefit of free space comes through dynamic over-provisioning (covered in Chapter 4). With TRIM enabled, the controller treats any free user space as additional OP – more room for garbage collection and lower write amplification. The returns are real but diminishing: going from 90% full to 80% full has a much larger impact than going from 50% to 40%.

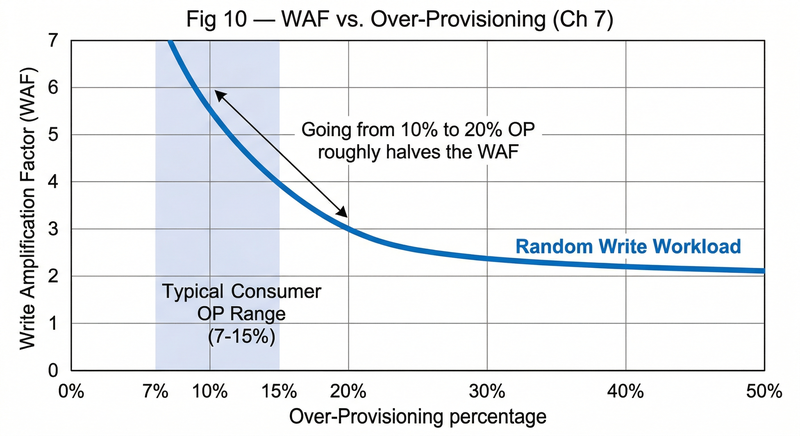

Figure 10: Write amplification drops steeply as over-provisioning increases from 7% to 20%, with diminishing returns beyond that. Under random write workloads, going from 10% to 20% OP roughly halves WAF.

Make sure your SSD is 4K-aligned, especially if you cloned from a hard drive. Misalignment can cause unnecessary read-modify-write operations that hurt performance. Most modern OS installers and cloning tools handle this correctly, but it's worth verifying.

Benchmarking

If you want to test your drive's performance, tools range from simple to comprehensive. CrystalDiskMark is the most common quick benchmark, giving you sequential and random read/write numbers at various queue depths. For more control, FIO (flexible I/O tester) lets you define custom workloads – queue depth, block size, read/write mix, duration – and is available on both Linux and Windows.

Keep in mind that benchmark results vary with the drive's fill state, thermal state, and how recently it was trimmed or preconditioned. A freshly-trimmed drive will benchmark differently than one at 80% capacity after sustained writes.

Toolbox Software and Drivers

Most SSD manufacturers offer a downloadable toolbox application – Samsung Magician, WD Dashboard, Crucial Storage Executive, and so on. These provide SMART monitoring, firmware updates, secure erase options, and sometimes performance optimization features. None of this software is required for normal drive operation; it's supplementary.

Custom NVMe drivers are no longer necessary for most drives. The Microsoft inbox NVMe driver (StorNVMe) handles the vast majority of functionality, including HMB and DirectStorage support. Samsung was one of the last holdouts with a proprietary NVMe driver and dropped it starting with the 990-series.

Some manufacturer toolboxes offer DRAM caching features (Samsung's RAPID Mode, Crucial's Momentum Cache) that cache data in system RAM. These are generally not recommended – the modern Windows cache is already effective, and the additional caching layer adds complexity and another point of failure for power-loss scenarios without meaningful real-world performance improvement.

NAND Manufacturing and Evolution

NAND flash has undergone dramatic changes in how it's physically manufactured, and those changes directly affect the performance, endurance, and cost of the drives you buy. This chapter covers the major architectural shifts and the current state of manufacturing, with enough detail to understand why different flash generations and architectures behave differently.

From 2D to 3D: Why NAND Went Vertical

Early NAND flash was planar – cells were arranged in a single layer on the silicon surface, and increasing density meant shrinking the cells. This worked until the cells became so small that they couldn't reliably hold enough charge to distinguish between voltage states. Cell-to-cell interference, reduced data retention, and plummeting endurance made further planar scaling impractical.

The solution was to go vertical. Instead of shrinking cells, 3D NAND stacks layers of cells on top of each other. This allows each individual cell to be physically larger than it was in late-generation planar flash, which improves charge retention, reduces interference, and increases endurance – even as total density goes up. The trade-off is manufacturing complexity: building dozens or hundreds of layers of precisely aligned structures is significantly harder than etching a single layer.

Floating Gate vs. Charge Trap

The two fundamental cell architectures in NAND flash are floating gate and charge trap.

Floating gate (FG) stores charge on an electrically isolated conductive layer – the floating gate itself – sandwiched between insulating layers. This was the original NAND cell design and was used in most 2D flash and early 3D designs. Floating gate offers good data retention and is the more natural fit for split-gate technologies that could enable higher density in future generations. Intel (now Solidigm, under SK hynix) was the most prominent user of floating gate in 3D NAND. Micron used floating gate through their earlier 3D generations before transitioning to replacement gate at 128L and above.

Charge trap (CT) stores charge in an insulating material rather than a conductive one. The cells are formed as vertical pillars etched through the stacked layers, creating a 3D array. Charge trap has several advantages for scaling: smaller cell and pillar sizes, better immunity to coupling interference between adjacent cells, and a structure that's more amenable to placing control circuitry underneath the flash array – a design approach that goes by various names including periphery-under-cell (PUC), CMOS-under-Array (CuA), or core-over-periphery (CoP). Moving peripheral circuitry under the array frees up die area, which is critical as layer counts increase.

Most manufacturers have adopted charge trap for current and future development. The major variants include BiCS (Kioxia/WD), V-NAND (Samsung), replacement gate or TCAT (Micron), and P-BiCS/SP-BiCS (SK hynix). YMTC produces 3D NAND using its Xtacking architecture, which bonds the NAND array to its peripheral circuitry through a wafer-to-wafer bonding process.

Cell Architecture Families

While all current 3D NAND shares the basic charge trap structure, each manufacturer's implementation has distinct characteristics that affect performance, endurance, and scalability.

Samsung V-NAND is a form of TCAT (terabit cell array transistor) with peripheral circuitry placed under the cell array. Samsung is currently on V9 (286 layers) and demonstrated V10 (400+ layers) at ISSCC 2025.

Kioxia/WD BiCS (Bit Cost Scalable) is the architecture behind both companies' flash, developed from their long-standing partnership. Current production is BiCS8 at 218 layers.

Micron Replacement Gate uses a TCAT variant where certain layers are removed and replaced with gate material during fabrication, optimizing die size. Current generations are G8 (232 layers) and G9 (276 layers), both designed for their CuA peripheral architecture.

SK hynix uses P-BiCS and SP-BiCS charge trap designs. Their 321-layer NAND uses triple-deck stacking – the first manufacturer to ship a three-deck design. SK hynix also acquired Intel's NAND business (now Solidigm), which retains legacy floating gate designs alongside newer development.

These architectural differences influence plane count, page size, programming characteristics, and endurance – which in turn shape the performance profiles of the controllers designed to work with them. A controller optimized for four-plane Micron flash may behave differently than one tuned for Samsung's V-NAND, even if the headline specs look similar.

Layer Counts and String-Stacking

Layer count is the most commonly cited generation marker for 3D NAND. The progression has moved from 32L to 48L, 64L, 96L, 128L, 176L, and into the current 200L+ era, with 232L (Micron), 238L (SK hynix), 276L (Micron), 286L (Samsung), and 321L (SK hynix) in production or shipping. Roadmaps now extend to 500+ layers.

The marketed layer count refers to the number of active cell layers; the actual layer count is higher once you add dummy layers (which reduce program disturb at the edges), string select transistors, and ground select transistors. Samsung's original 32-layer V-NAND, for example, had 39 physical layers.

Pushing beyond roughly 100 active layers in a single stack becomes impractical due to the extreme aspect ratios required for memory hole etching – the holes must be drilled straight through the entire layer stack, and they tend to taper from wider at the top to narrower at the bottom, creating non-uniform cells. The solution is string-stacking: manufacturing two or more shorter stacks and bonding them together. Two 128L stacks become 256L, three 107L stacks become 321L (as with SK hynix's latest), and so on.

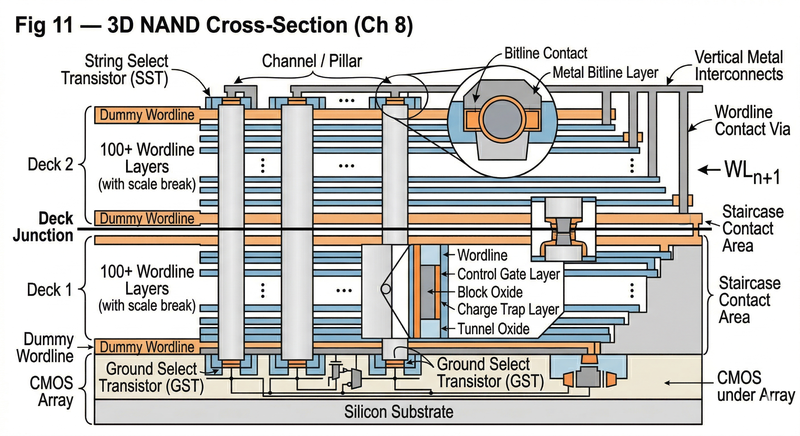

Figure 11: Cross-section of a 3D NAND flash structure. Two decks of wordline layers are stacked above CMOS peripheral circuitry, with vertical channel pillars passing through the array. Dummy wordlines at deck edges and the staircase contact area for wordline connections are visible.

String-stacking introduces its own challenges. The stacks must be precisely aligned where they meet, and different manufacturers handle this alignment differently. Each junction adds dummy layers for electrical stability. Yields are lower than single-stack designs. But string-stacking has become universal – it's the only practical path to 300+ layers and is how every manufacturer is scaling today.

Hybrid bonding is emerging as a next-generation technique to improve the connections between stacked layers and between the NAND array and peripheral circuitry, potentially enabling even higher layer counts.

Process Challenges and Scaling Limits

Several fundamental challenges shape where NAND manufacturing goes from here.

High aspect ratio etching is the most critical. Memory holes must be etched vertically through the entire layer stack with extreme precision. As layer counts increase, the aspect ratio grows – the ratio of depth to width – making it harder to maintain uniform hole diameter and straight walls. Cells at the top of the stack end up physically larger than cells at the bottom, which creates non-uniform electrical characteristics that the controller must account for.

Alignment between decks in string-stacked designs must be precise. Misalignment introduces resistance and can create reliability issues at the junction. Each manufacturer has a different approach to this, and the quality of alignment is one of the factors that separates good flash from great flash.

Peripheral circuitry placement becomes more constrained as the array grows. Moving circuitry under the cell array (PUC/CuA/CoP) is now standard, but the power delivery, signal routing, and thermal management of that circuitry gets more complex with each generation.

Split-cell technology is the leading candidate for the next major density improvement. The idea is to divide each memory hole into two cells, effectively doubling the cell count for a given number of layers. This takes advantage of the curved topology of the pillar to create two distinct charge storage regions. SK hynix presented a split-cell charge trap design for 5-bit-per-cell (PLC) NAND at IEDM 2025, representing the most promising path to PLC production. Earlier split-gate work favored floating gate architectures, but charge trap variants are now being developed as well.

PLC (penta-level cell) itself remains in research. No commercial PLC drives have shipped as of early 2026. The challenge is that 32 voltage states per cell requires extraordinary precision in both programming and reading, with error rates that push current ECC to its limits. Split-cell designs may provide the endurance improvement needed to make PLC viable.
